Megger MST210 Electrical Socket Tester

Megger MST210 Electrical Socket Tester

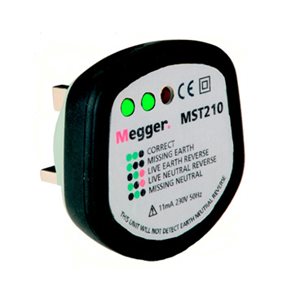

The Megger MST210 Socket Tester is a convenient, compact plug-in style tester designed to identify wiring faults at UK 13A 3-pin power sockets.

Over 17 combinations of wiring fault can be identified including missing wires and incorrect or reversed connections.

Faults are signalled by 3 bright LED’s on the front of the unit, with a simple diagnosis chart for typical errors included on the label next to the LED’s. 2 green LED’s signal a correctly wired socket, and a third red LED identifies a fault.

If either green LED fails to light, or the red LED comes on, a fault is present and will require further investigation.

Features:

• Simple and effective identification of faulty wiring at sockets
• Easy to use
• 2 green and 1 red LED’s for instant error reporting and fault diagnosis
• Identifies 17 missing wire and wrong connection combinations
• Rugged and reliable

Specifications:

• Indicators: Bright LED 2 Green; 1 Red
• Supply Rating: 230 V AC 50/60Hz single phase
• Operating Temperature: 0°C to +40°C
• Humidity: 0 to +40°C <95%Rh
• Safety rating: IEC/EN61010-1:2001-02 over voltage Cat II 300V
• EMC: IEC/EN 61326:1998
• Dimensions: 69mm x 67mm x 32mm
• Weight: 80g
• Warranty: 1 year full replacement
