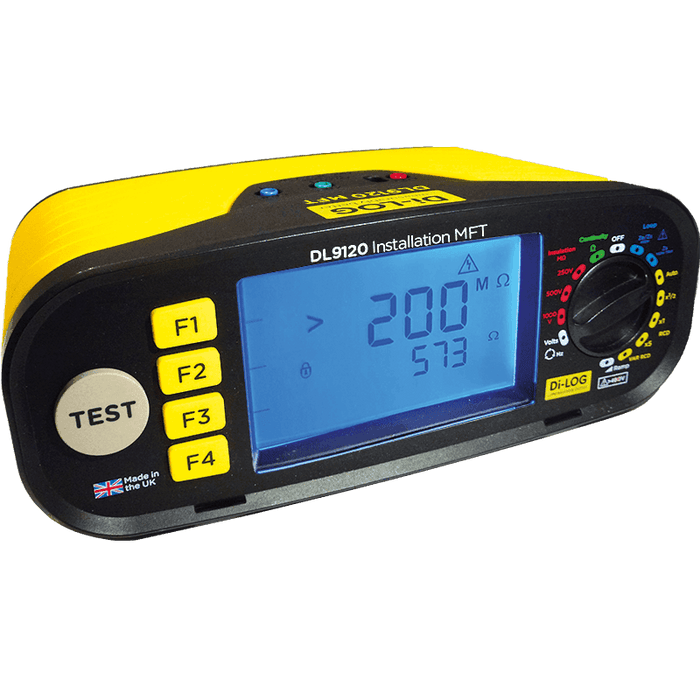

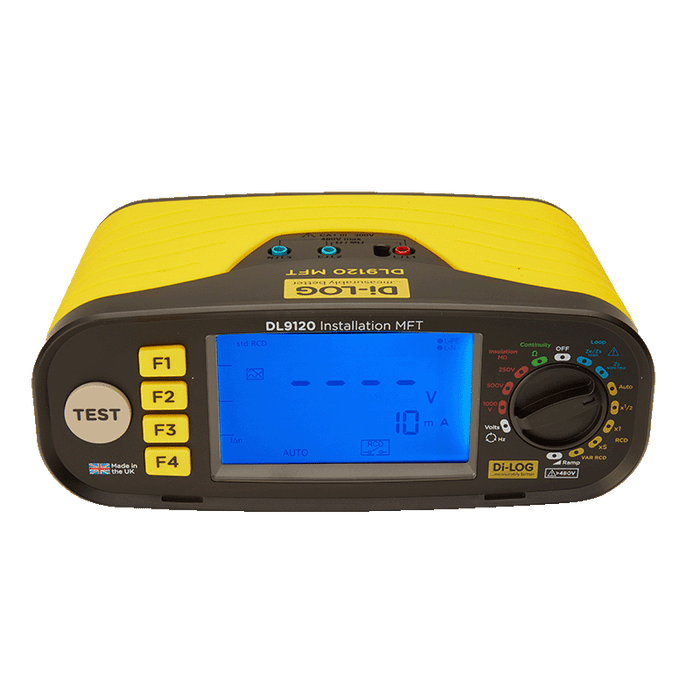

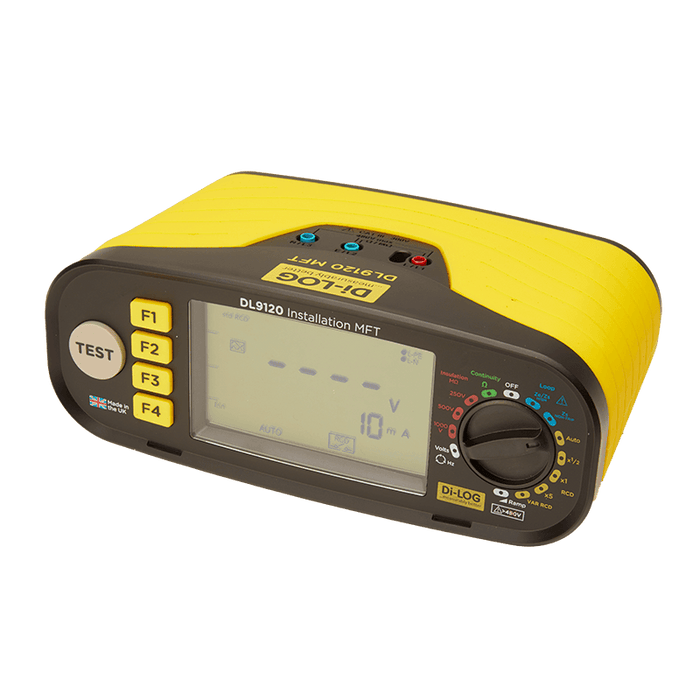

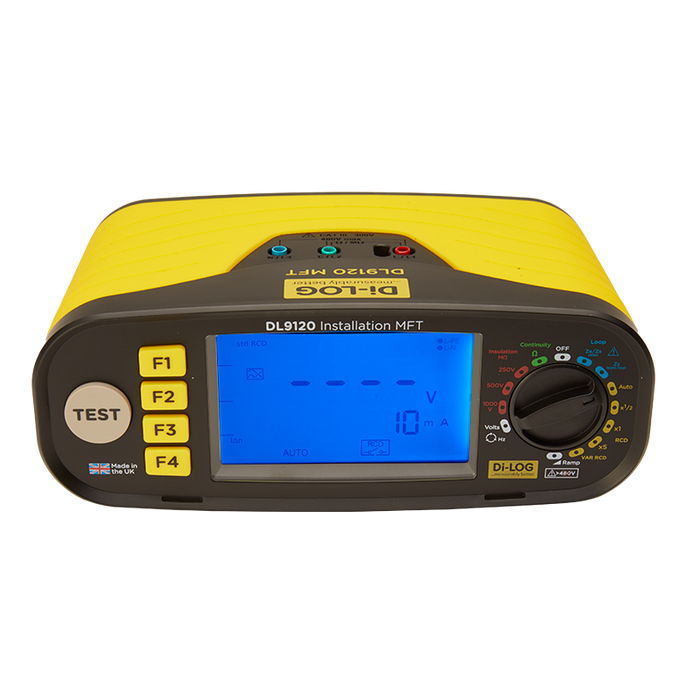

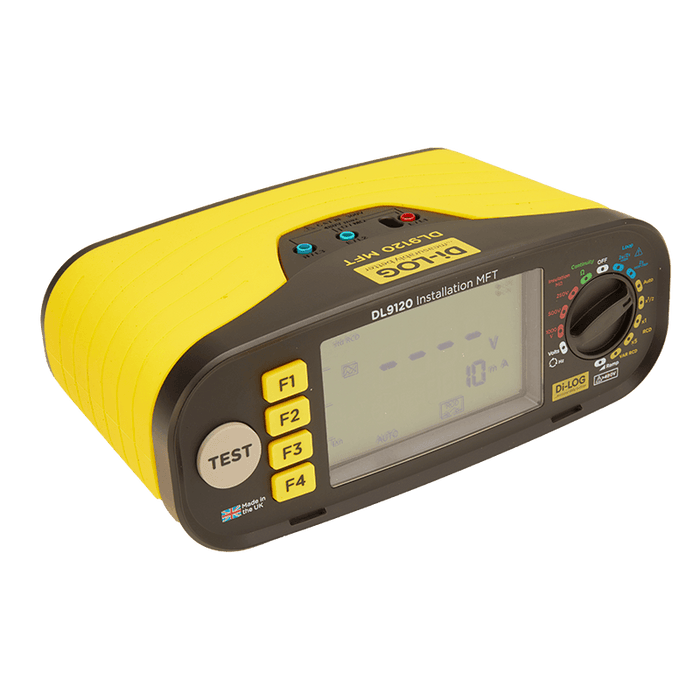

Di-LOG DL9120 18th Edition Advanced Multifunction Tester c/w RCD-LOC

Di-LOG DL9120 18th Edition Advanced Multifunction Tester c/w RCD-LOC

Product Description

18th Edition Advanced Multifunction Tester
The ALL NEW DL9100 series advanced multifunction tester has been designed to fully comply with the testing requirements of the 18th Edition. Made in Britain, the exciting new DL9100 range incorporates many of the features that you would have come to expect with modern MFTs and a lot more.

Type B RCD Testing
Type B RCDs are becoming more frequent in PV and EV installations, so it is vital that when needed, your multifunction tester can perform a Pure DC RCD test. A variable RCD feature has also been added to the DL9120 & DL9130EV enabling the user to dial in bespoke mA values when the need arises.

Intelligent User Features a the press of a button
With a brand new RGB colour changing screen that visually indicates potential pass/fail conditions, the DL9120V offers intelligent user features. A fully automated Continuity & Earth Loop Auto Start with a secondary display so you capture the recorded results. Never seen before on a multifunction tester, is the high current loop with intelligent detection identifying if the user is conducting either a 2 wire or 3 wire configuration Loop/PSCC measurement without the need for selecting a different dial position.

The DL9120 offers incredible value for a feature-packed MFT meeting all the safety and performance requirements of BS EN 61557.

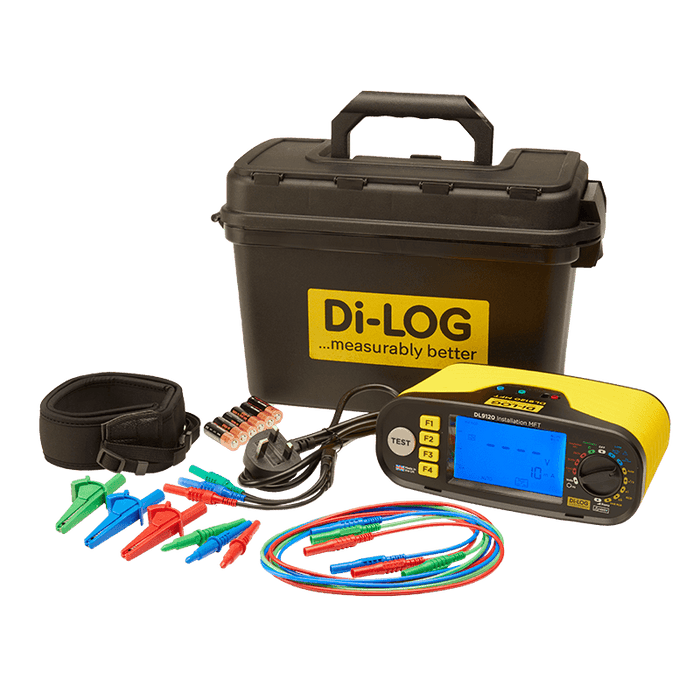

The ultimate 18th Edition Advanced MFT Test Kit.

Key Features

• Intelligent auto detecting 2 or 3 wire High Current Loop Test.
• Auto EV Test Sequence.
• Auto Start Loop & Continuity tests.
• Type AC, A, B & Selective (S) RCD Testing
• Variable RCD Test.
• 1000V Insulation test
• Colour LCD display with colour change feature
• Supplied with a UKAS Calibration Certificate fully traceable to national standards

Features

• Loop Impedance/PSCC – Unique auto start RCD-LOC XLT loop test principle will not trip any RCD or RCBO
• 2/3 wire high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection
• RGB colour changing screen visually indicating potential pass/fail conditions
• Phase to Phase Loop with Phase Rotation Test – will indicate the correct phase sequence
• Continuity test – with auto start & null facility to zero out lead resistance
• Auto RCD testing – Trip time, trip current, auto test and ramp current
• Type AC, A, B & Time Delayed RCDs (S)
• Insulation measurement – with 250, 500 & 1000V test voltages
• Phase Rotation Test – will indicate the correct phase sequence
• Integrated socket polarity test
• Fully protected against damage when accidentally connected across phases

Data Sheet:

Instruction Manual:

Di-LOG DL9100 Series Brochure:
