Kewtech KT66ET Kit with KT66DL 12in1 MFT & ACCESKIT (Earth Spikes & Leads)

Kewtech KT66ET Kit with KT66DL 12in1 MFT & ACCESKIT (Earth Spikes & Leads)

Make full use of the KT66DLs functions with the earth spike kit for earth resistance testing

Benefits:

• The KT66DL is a powerful multifunction tester designed specifically for the UK. It has special loop circuits for when conducting Zs readings at EV charging points as well as a 25 A high current test which enables a 50 kA PSC range. It also has a low current 2 wire test which is ideal for lighting circuits protected by an RCD.
• The KT66ET kit includes earth spikes which is needed for the earth resistance function, of which there is a growing requirement in the UK.

Features:

• KT66DL advanced MFT complete with Earth spike kit for  testing earthing electrodes / spikes
• High current loop options with 6A & 25 A test  currents giving 0.01 and 0.001 Ω resolution
• Low current, no trip, 2 or 3 wire loop options meaning that you can also at lighting points where no neutral exists
• Tests EV charging points with type B, type EV RCDs and 6ma RDCDs capability, as well as two EV loop options specifically for the UK
• Comprehensive RCD function: AC, ACS, A, AS, F, B. BS, EV & 6mA RDCD
• Insulation: 4 test voltages, resistance bar graph &  DAR / PI functionality
• SPD testing with both DC & AC breakdown voltage displayed, 1000V range
• Dual display of PFC / PSC with a PFC range of 50KA
• Earth resistance for TT and independent earthing systems like foundation earthing
• Phase rotation with clear indication and L1-L2, L2-L3 & L3-L1 voltage displayed  simultaneously
• Voltage function with simultaneous L-PE, LN & N-PE values displayed
• Selectable Max Zs tables with all UK overcurrent devices included, provides pass or fail indication
• PAT testing feature with memory and download

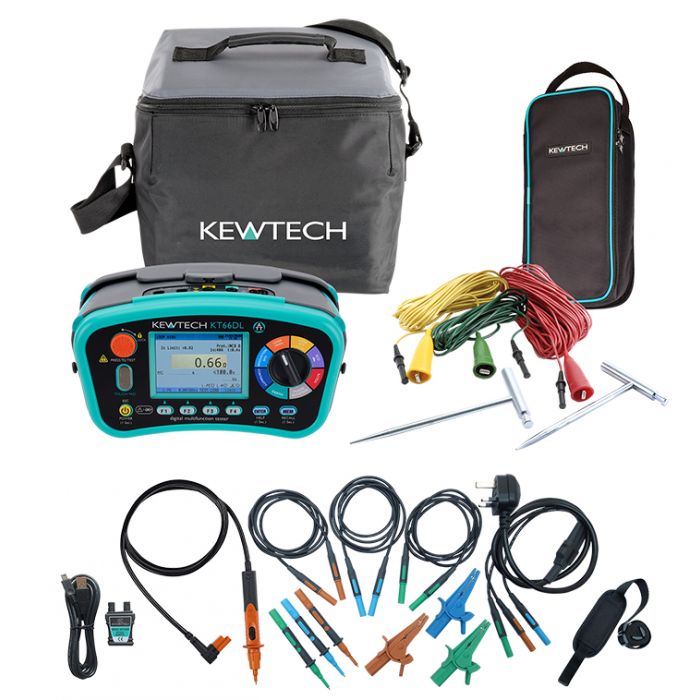

Included In The Box

• 1 Pair Earth spikes
• 1 set of lest leads 1x Red 20 m 1 x Yellow 10 m 1 x Green 5 m (ACC7095)
